Railing > Westbury Aluminum Railing

With a variety of designs, colors, and textures, you can decide what fits right for your home while adding a level of beauty, distinction, and lasting value to your home. All Westbury® Aluminum Railing features AAMA 2604 rated powder coating, offering an uncompromising quality created by state-of-the-art technology.

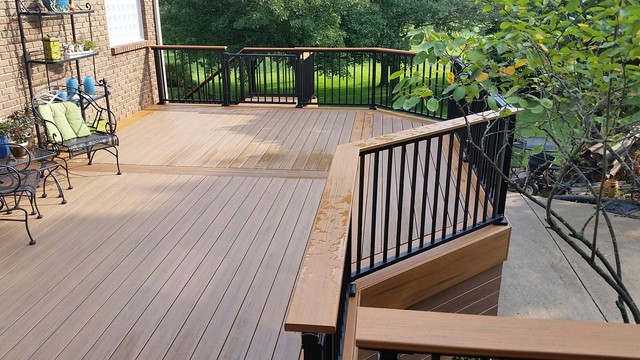

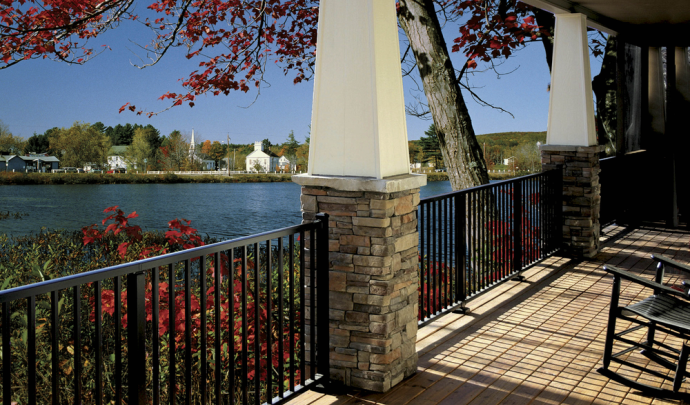

 Photo: Westbury Aluminum Tuscany black fine texture aluminum.

Westbury Aluminum Railing Collections

Tuscany Collection

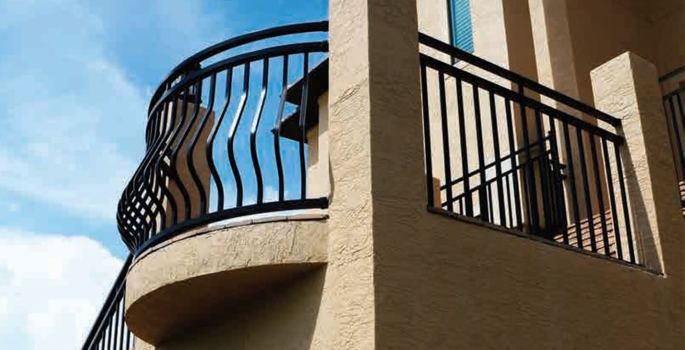

Montego Collection

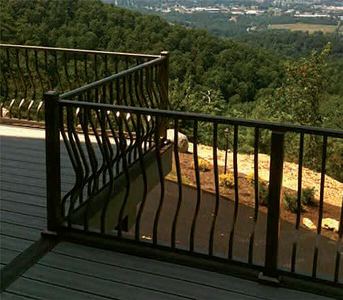

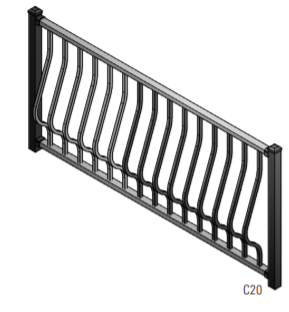

Style C20: The Montego Series creates an eye-catching design with the curved lines of the architectural balusters and a definitive 2-rail design. You’ll want to roll out the red carpet for these luxurious designs.

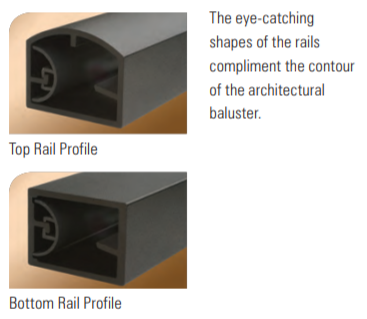

SPECIFICATIONS • Railing Heights: 36", 42" • Railing Lengths: 4', 5', 6', 7', 8' • Stair Rail Lengths*: 4', 5', 6', 7', 8' • Architectural Baluster: 3/4" x 3/4" x (.053" wall) • Architectural Baluster Spacing: 3.875", 3.625" Stairs • Stylish Top Rail: 1-3/4" w (.090") x 1-3/8" t (.085") • Bottom Rail: 1-3/4" w (.090") x 1-1/4" t (.120") • Vinyl Insert Baluster Retainer (Top and Bottom Rails) • Bottom Rail Support: 7', 8'

Riviera Collection

Style C30	Style C301

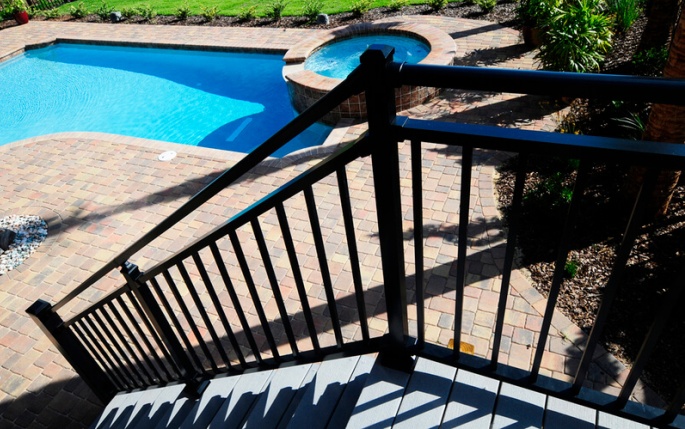

With the open top space and 3/4" balusters filling in the bottom area, Style C30 adds a rich presence to your outdoor living space.	For a unique look to fit your personality, Style C301 opens your view by utilizing 3/4" round balusters.

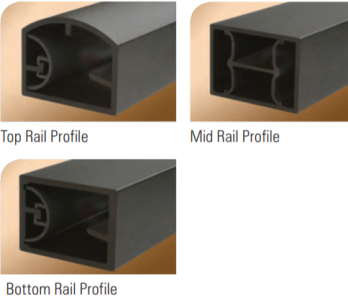

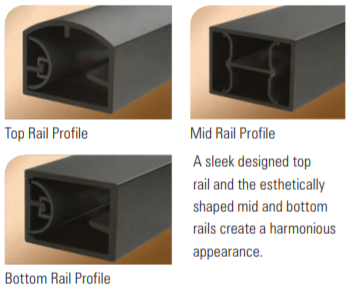

SPECIFICATIONS • Railing Heights: 36", 42" • Railing Lengths: 4', 5', 6', 7', 8' • Stair Rail Lengths*: 4', 5', 6', 7', 8' • C30 Baluster: 3/4" x 3/4" x (.045 " wall) • C301 Baluster: 3/4" Round (.050" wall) • Baluster Spacing: 3.875", 3.625" Stairs • Stylish Top Rail: 1-3/4" w (.090") x 1-3/8" t (.085") • Mid Rail: 1-3/4" w (.070") x 1-1/4" t (.070") • Bottom Rail: 1-3/4" w (.090") x 1-1/4" t (.120") • Vinyl Insert Baluster Retainer (Top, Mid and Bottom Rails) • Bottom Rail Support: 5', 6', 7', 8' • Adjustable Gates: 36”W, 48”W, and 60"W Openings

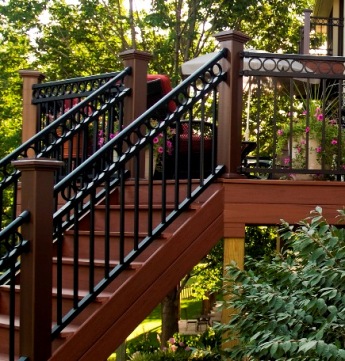

Riviera "R" Collection

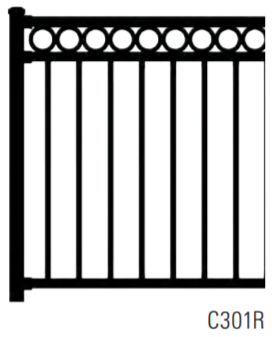

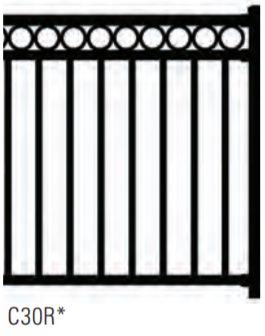

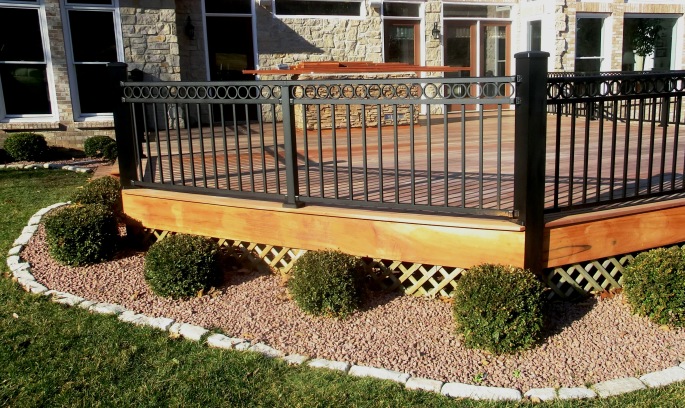

Styles C30R* & C301R: Adding rings to the 3-rail design gives it a sophisticated appearance. With an option of Style C30R 3/4" square or Style C301R 3/4" round balusters, you can create your own design to fit your lifestyle.

SPECIFICATIONS • Railing Heights: 36", 42" • Railing Lengths: 4', 5', 6', 7', 8' • Stair Rail Lengths*: 4', 5', 6', 7', 8' • C30R Baluster: 3/4" x 3/4" x (.045" wall) • C301R Baluster: 3/4" Round (.050" wall) • Baluster Spacing: 3.875", 3.625" Stairs • Stylish Top Rail: 1-3/4" w (.090") x 1-3/8" t (.085") • Mid Rail: 1-3/4" w (.070") x 1-1/4" t (.070") • Bottom Rail: 1-3/4" w (.090") x 1-1/4" t (.120") • Vinyl Insert Baluster Retainer (Top, Mid and Bottom Rails) • Bottom Rail Support: 5', 6', 7', 8 • Adjustable Gates: 36”W, 48”W, and 60"W Openings

Riviera I Collection

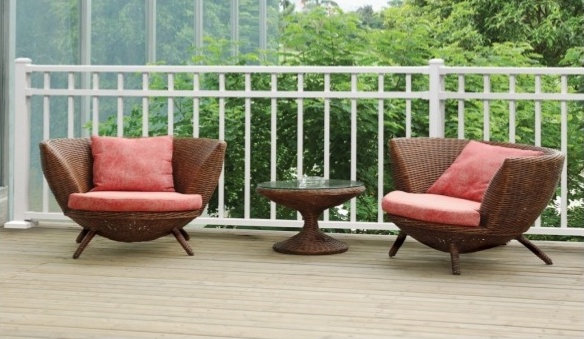

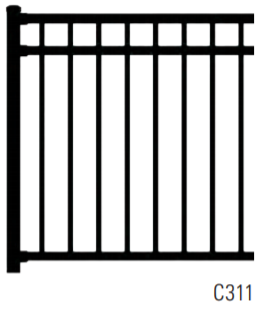

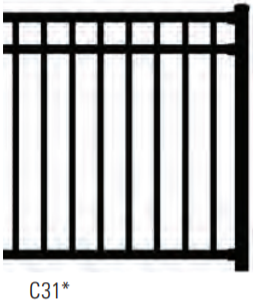

Styles C31* & C311: You can create a high quality appearance with the designs of Style C31 or C311. Style C31 utilized a 3-rail design including 3/4" square balusters while Style C311 is comprised of the 3-rail design along with 3/4" round balusters.

SPECIFICATIONS • Railing Heights: 36", 42" • Railing Lengths: 4', 5', 6', 7', 8' • Stair Rail Lengths*: 4', 5', 6', 7', 8' • C31 Baluster: 3/4" x 3/4" x (.045" wall) • C311 Baluster: 3/4" Round (.050" wall) • Baluster Spacing: 3.875", 3.625" Stairs • Stylish Top Rail: 1-3/4" w (.090") x 1-3/8" t (.085") • Mid Rail: 1-3/4" w (.070") x 1-1/4" t (.070") • Bottom Rail: 1-3/4" w (.090") x 1-1/4" t (.120") • Vinyl Insert Baluster Retainer (Top, Mid and Bottom Rails) • Bottom Rail Support: 5', 6', 7', 8' • Adjustable Gates: 36”W, 48”W, and 60"W Openings

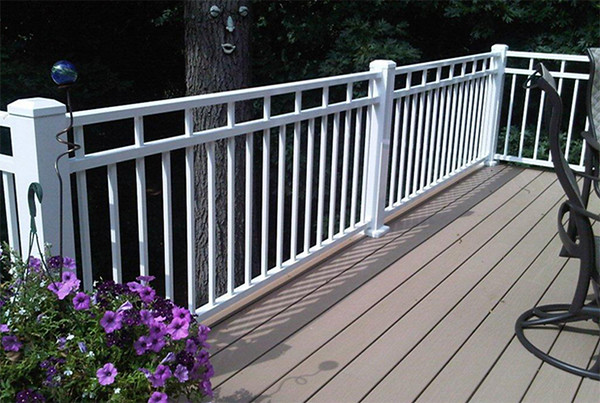

Riviera II Collection

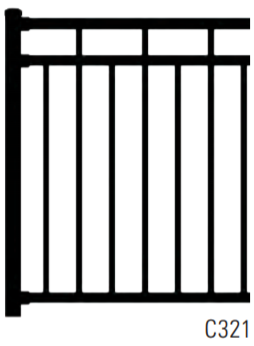

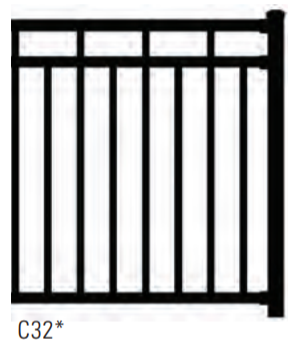

Styles C32* & C321: The Riviera II Series embraces a proud statement by taking the ordinary to the extraordinary. The look and feel of every other Baluster in the top section compliments the full balusters below.

SPECIFICATIONS • Railing Heights: 36", 42" • Railing Lengths: 4', 5', 6', 7', 8' • Stair Rail Lengths*: 4', 5', 6', 7', 8' • C32 Baluster: 3/4" x 3/4" x (.045" wall) • C321 Baluster: 3/4" Round (.050" wall) • Baluster Spacing: 3.875", 3.625" Stairs • Stylish Top Rail: 1-3/4" w (.090") x 1-3/8" t (.085") • Mid Rail: 1-3/4" w (.070") x 1-1/4" t (.070") • Bottom Rail: 1-3/4" w (.090") x 1-1/4" t (.120") • Vinyl Insert Baluster Retainer (Top, Mid and Bottom Rails) • Bottom Rail Support: 5', 6', 7', 8' • Adjustable Gates: 36”W, 48”W, and 60"W Openings

Riviera III Collection

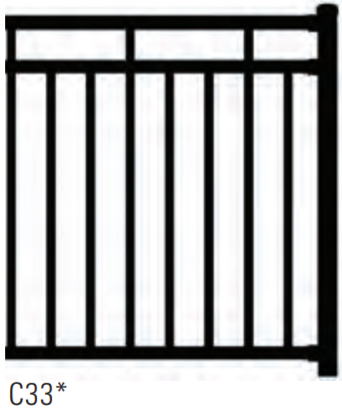

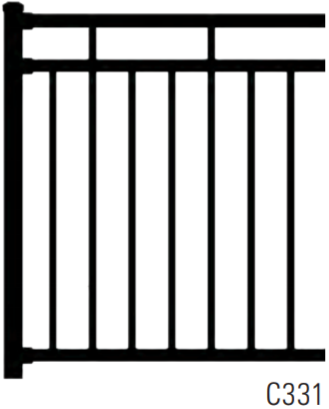

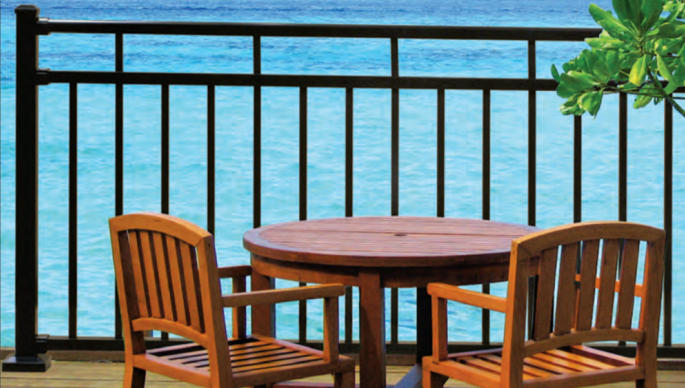

Styles C33* & C331: Riviera III Series encompasses the 3-rail design with a unique top design. This design places every third Baluster in the top section while the bottom section contains balusters within the entire section. Style C33 is created with 3/4" square balusters. Style C331 captures a different feel with 3/4" round balusters.

SPECIFICATIONS • Railing Heights: 36", 42" • Railing Lengths: 4', 5', 6', 7', 8' • Stair Rail Lengths*: 4', 5', 6', 7', 8' • C33 Baluster: 3/4" x 3/4" x (.045" wall) • C331 Baluster: 3/4" Round (.050" wall) • Baluster Spacing: 3.875", 3.625" Stairs • Stylish Top Rail: 1-3/4" w (.090") x 1-3/8" t (.085") • Mid Rail: 1-3/4" w (.070") x 1-1/4" t (.070")• Bottom Rail: 1-3/4" w (.090") x 1-1/4" t (.120") • Vinyl Insert Baluster Retainer (Top, Mid and Bottom Rails) • Bottom Rail Support: 5', 6', 7', 8' • Adjustable Gates: 36”W, 48”W, and 60"W Openings

Riviera IV Collection

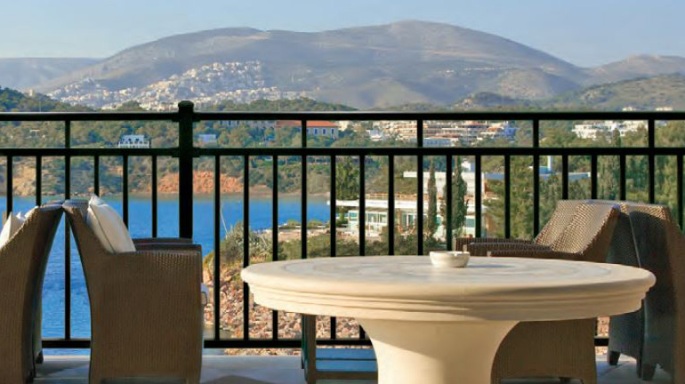

Styles C34* & C341: For a more delicate appearance, the Riviera IV Series takes every fourth Baluster to the top rail with a bottom section full of balusters. Style C34 has 3/4" square balusters while Style C341 is complimented with 3/4" round balusters.

SPECIFICATIONS • Railing Heights: 36", 42" • Railing Lengths: 4', 5', 6', 7', 8' • Stair Rail Lengths*: 4', 5', 6', 7', 8' • C34 Baluster: 3/4" x 3/4" x (.045" wall) • C341 Baluster: 3/4" Round (.050" wall) • Baluster Spacing: 3.875", 3.625" Stairs • Stylish Top Rail: 1-3/4" w (.090") x 1-3/8" t (.085") • Mid Rail: 1-3/4" w (.070") x 1-1/4" t (.070") • Bottom Rail: 1-3/4" w (.090") x 1-1/4" t (.120") • Vinyl Insert Baluster Retainer (Top, Mid and Bottom Rails) • Bottom Rail Support: 5', 6', 7', 8' • Adjustable Gates: 36”W, 48”W, and 60"W Openings

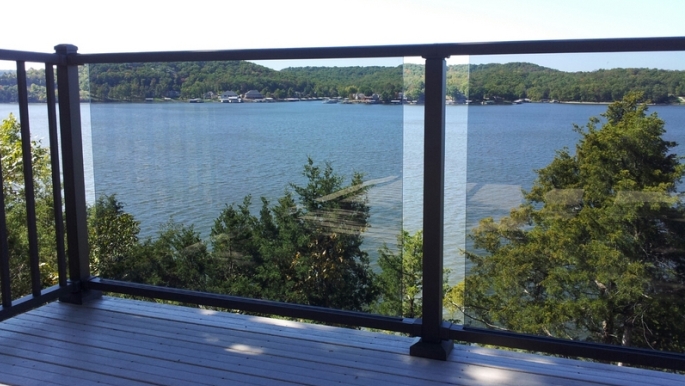

Veranda Collection

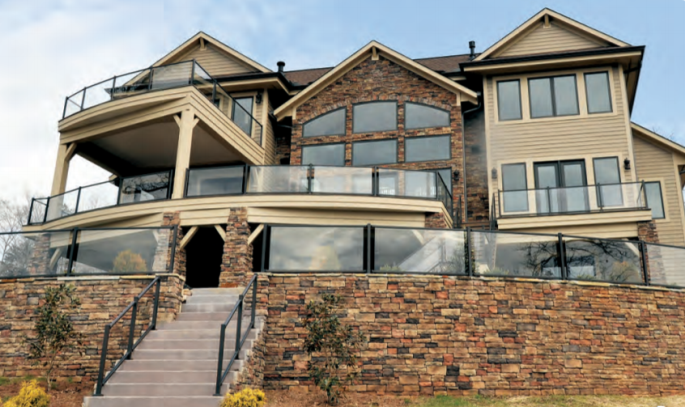

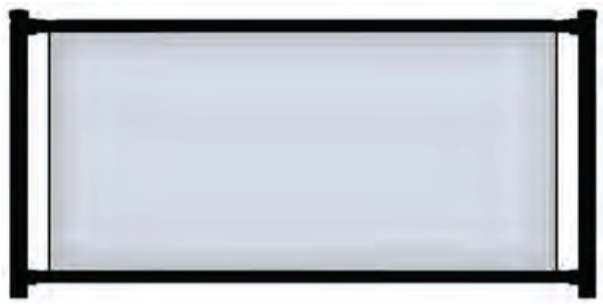

Styles C70: The Veranda Series creates a phenomenal viewing area. The crystal clear design incorporates full glass panels into the classic 2-rail design. Whether you have a view of land or water, the Veranda Series gives you an open concept with the security of a full railing sections.

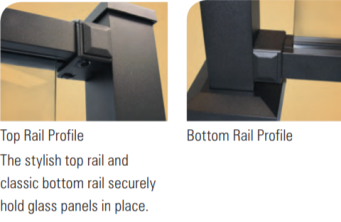

SPECIFICATIONS • Railing Heights: 36", 42" • Railing Lengths: 4', 5', 6' • Stair Rail Lengths: All Stair Rails are Custom Ordered • Glass Panel: 1/4" Tempered Glass Standard • Standard Glass Panel Color: Clear Special Order Colors: Bronze, Grey • Optional 3/8” Tempered Glass Rails Available (3/8” Glass NOT Available Through DSI) • Stylish Top Rail: 1-3/4" w (.085") x 1-3/8" t (.085") • Bottom Rail: 1-3/4" w (.085") x 1-1/4" t (.085") • EPDM Gasket: Top and Bottom Rails • Welded Gates: 36”W, 48”W, and 60"W Openings (Custom Sizes Available through Tech Services)

 RailingCAcessories

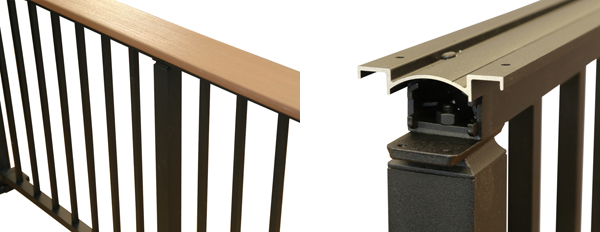

Drink Rail

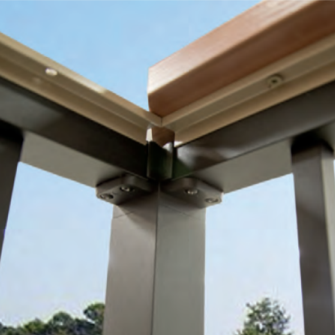

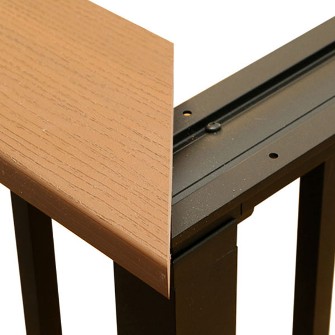

Westbury® Drink Rail adapts to all Westbury® C Series designs. Pre-drilled and ready to install, Drink Rail mounts sturdily and is ready for your wood or composite material to be attached. Convenient and beautiful, Drink Rail creates the perfect spot for your morning coffee or a cool drink in the afternoon.

SPECIFICATIONS • Pre-Drilled Westbury® Aluminum Drink Rail (individually sleeved) • #10 x 5/8” Self-Tapping Screws (Attach To Top Rail) • #10 x 3/4” Screws (To Attach Deck Boards) • Drink Rail Length: 74” & 98” • Drink Rail Width: 3¼" • Supports Wood or Composite Deck Board • Lifetime Limited Warranty • Installs on Westbury® C Series Crossover Post System • Available in all Westbury® Standard Colors • Deck Board Not Included

ADA Compatible	Welded Corner

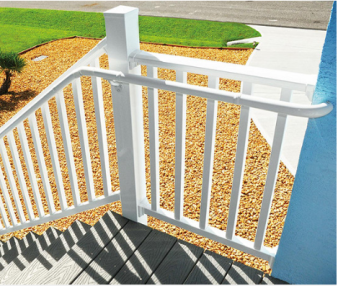

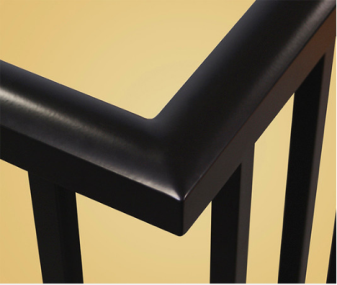

ADA-Compatible Products: A variety of accessories to complete your railing	Welded Corner: Make installation even easier with this helpful accessory

Westbury Rail Colors

Westbury® Standard Colors & Custom Colors

Westbury® Aluminum Railing is offered in a variety of colors and textures to compliment your home. Our 12 standard colors include satin, textured and multi-color finishes. Westbury® Aluminum Railing is also available in custom colors to meet your design vision, the possibilities are endless.

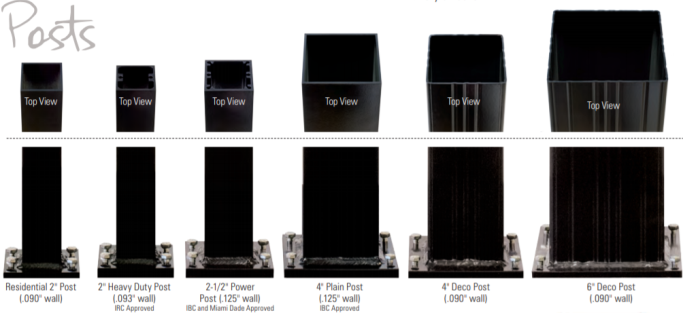

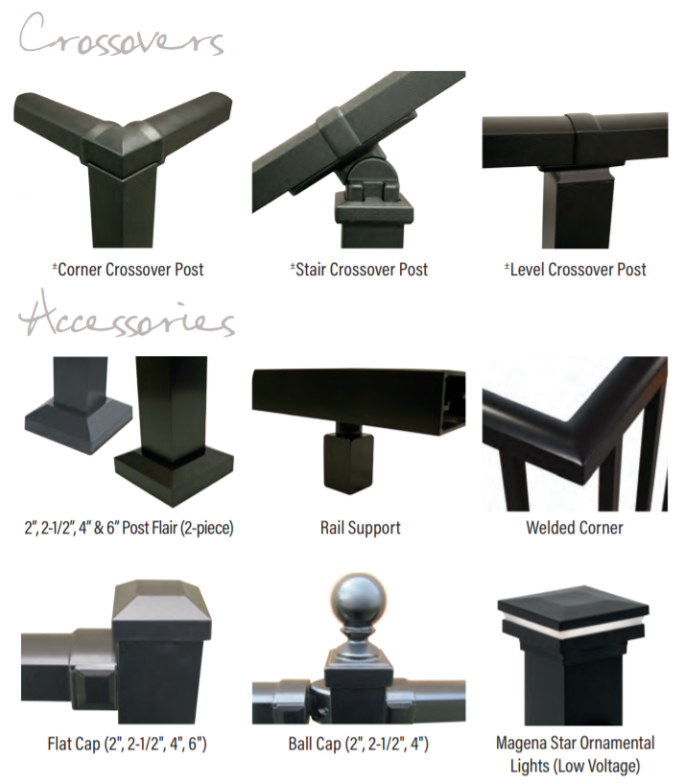

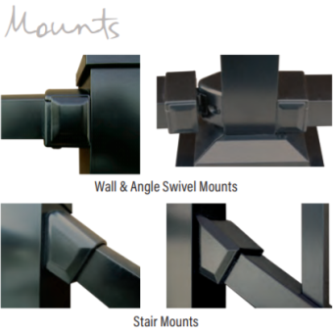

Brackets, Posts, Caps, & Flairs

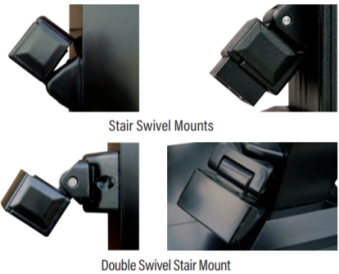

Westbury® Accessories add the finishing touch to your masterpiece. A variety of post sizes and wall thicknesses add strength to your railing. The combination of mounts and crossover options provides you with the ability to adapt Westbury® railing to your needs. Optional post caps finished off by the convenience of a 2-piece post flair creates a variety of looks.

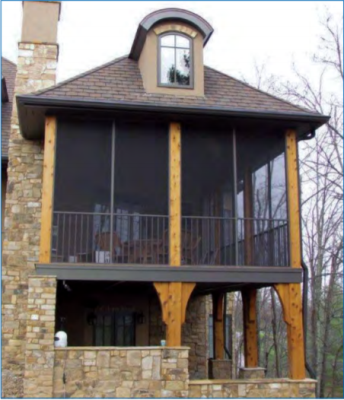

Screen Rail

Beauty meets strength. Elegance meets distinction. Masterpiece meets innovative engineering. Westbury® ScreenRail is designed with these essential elements in mind. With a variety of designs, colors, and textures, you have the power to decide what fits your home. Whether you are adding ScreenRail to the front of your home or to the deck in the back, Westbury® ScreenRail can turn your home into a welcoming retreat.

FEATURES

SPECIFICATIONS • Structural balcony railing system • Available heavy duty kick panel helps prevent screen damage from feet and pets • Easy to assemble 4’, 6’ and 8’ sections • Assembled universal door (right or left hand hinge) with heavy duty frame (Outward Swing Only) • Available in 12 standard Certified PCI 4000 A-2 (AAMA 2604) compliant powder coating colors. Custom Colors and AAMA 2605 available by special order • Durable flat spline secures screen • Designed to allow you to choose the screen type that best meets your needs*

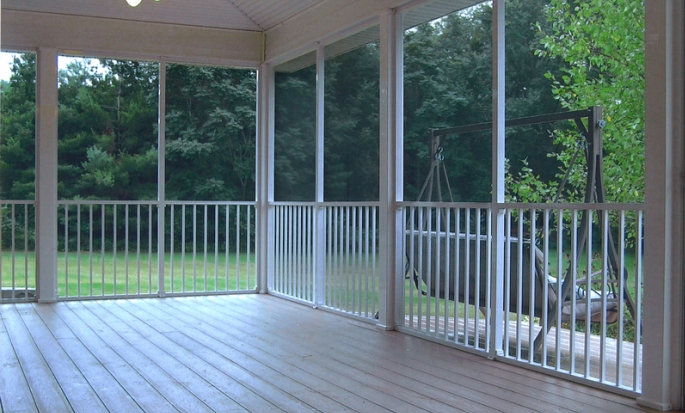

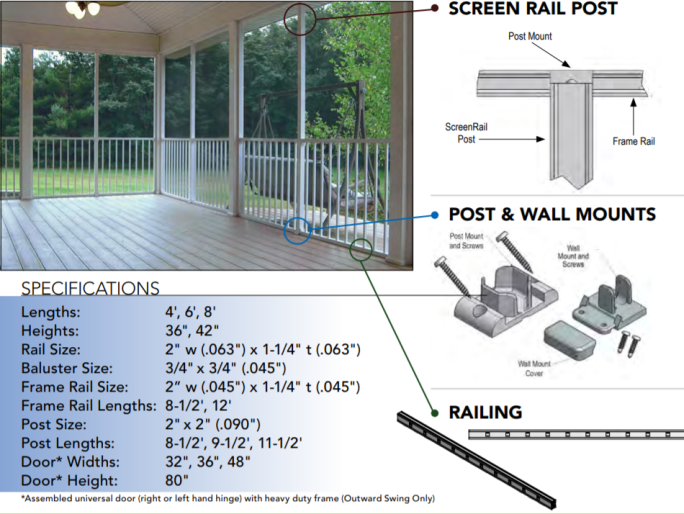

Screen Rail with Structural Railing

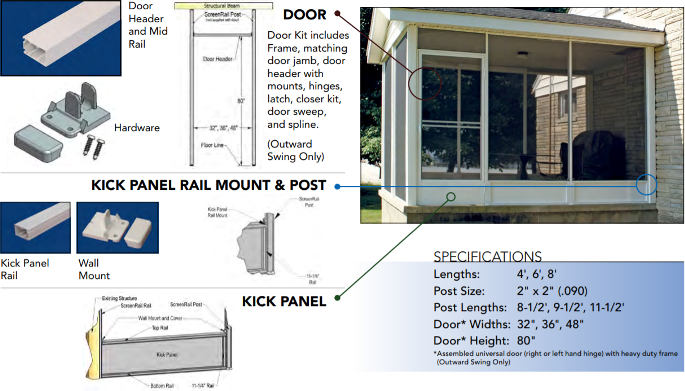

Screen Rail with Heavy Duty Kick Panel Sections

How to Install Westbury Railing

Installation instructions:

• Tuscany (C10) - Montego (C20) - Riviera (C30) - Veranda (C70) - VertiCable (C80)

• ScreenRail - ScreenRail Door

• Drink Rail - Tuscany (C10) Gate

Installation Video Links:

• Westbury® ScreenRail Installation – https://youtu.be/1039s-8c6-4
• Westbury® Heavy Duty 2” (IRC) Post Installation – https://youtu.be/e-h_mj-joiA
• Westbury® Post Installation – https://youtu.be/qy2yoPkNIlw
• Westbury® Post and Mounting Hardware Selection – https://youtu.be/dZNeHSu9J4s

• Westbury® Straight Rail Installation – https://youtu.be/El6tNaFLOOQ
