Decking > Railing > Trex Railing

Generally, where there is stunning decking, there’s railing—and finding the right match for your home and style is the fun part. These three exterior railing lines see any vision through with a range of colors, finishes and deck rail options. All this, plus easy configuration and maintenance, make Trex Railing the most luxurious exterior railing systems around.


Trex Select Railing Trex's most accessible line of simple, streamlined hand railing is both effortless and elegant.	Trex Transcend Railing Myriad colors and modular componentry give this composite deck railing a quick- and-easy, customized look.	Trex Signature Railing This modern line of aluminum railing and its variety of minimalist infill options are a testament to the refined beauty of negative space.

Trex - Transcends Railing

transcend-decking-railing-spiced-monmouth-rum-fascia

Photo: TRANSCEND® RAILING IN CLASSIC WHITE AND VINTAGE LANTERN WITH BLACK ROUND BALUSTERS AND TREX® FASCIA IN VINTAGE LANTERN

HIGH DESIGN. MYRIAD OPTIONS.

Trex's highest-performance railing option offers more colors in more component profiles than any railing out there. Won’t rot, warp, peel or splinter (which trumps sanding row after row of wooden balusters any day) and it never needs painting or staining, ever. Talk about luxurious.

HIGH PERFORMANCE

-Stands firm with a strong, sturdy look and feel.

-Built with the same incredible durability as Transcend decking–won’t rot, warp, peel or splinter

Photo: TREX TRANSCEND RAILING IN CHARCOAL BLACK

PERENNIAL BEAUTY

-Modular components let you mix and match your customized look with any Trex railing line

-Pairs seamlessly with Transcend decking…and just as beautifully with any other Trex decking line

TREX THROUGH AND THROUGH

-Contains a minimum of 40% recycled material

-Backed by the Trex 25-Year Limited Residential Warranty

Trex Transcends Railing Components

-Transcend is either a 5-step or 3-step process. Choose Trex post sleeves, caps and skirts (steps 1 & 2). Then choose each component separately for a custom design (steps 3–5).

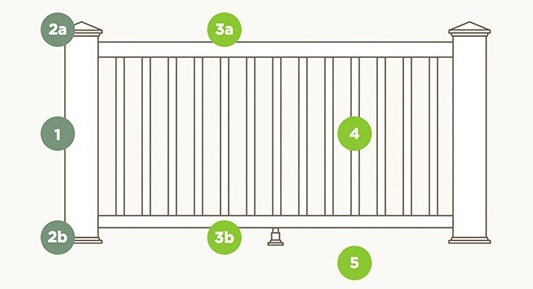

Trex Transcend Rail Components

Trex Transcends - Post Sleeves and Components


1. 4" Post Sleeve 4" x 4" x 39"/108" vctual external Dimensions: - 4.45" x 4.45" x 40" - 4.45" x 4.45" x 108" Fits over 4”x4” Pressure-Treated Post	1. 6" Post Sleeve 6" x 6" x 39"/108" vctual external Dimensions: - 5.5" x 5.5" x 39" - 5.5" x 5.5" x 108" Hollow sleeve that fits over a solid, pressure-treated post or post mount face fastening. Fits over 4”x4” Pressure-Treated Post. Available in Classic White only.

2A. Flat Post Sleeve Cap Actual External Dimensions: -4" x 4" (4.55" x 4.55") -6" x 6" (5.55" x 5.55") 6" Available in Classic White only.	2A. Pyramid Post Sleeve Cap Actual External Dimensions: -4" x 4" (4.55" x 4.55") -6" x 6" (5.55" x 5.55") 6" Available in Classic White only.

2b. Post Sleeve Skirt Actual External Dimensions: -4" x 4" (4.55" x 4.55") -6" x 6" (5.55" x 5.55") 6" Available in Classic White only.

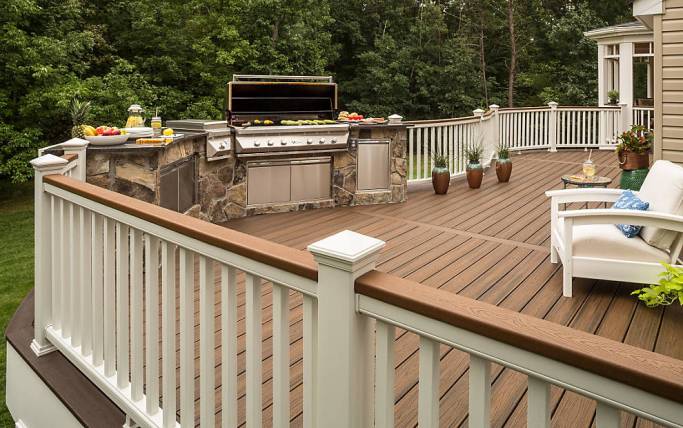

trex-transcend-tree-house-cocktail-spiced-rum

Photo: TREX TRANSCEND RAILING IN CLASSIC WHITE WITH TREE HOUSE COCKTAIL RAIL AND SPICED RUM DECKING

Trex Transcends - Rails, Balusters, & Infills

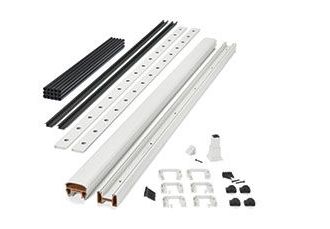

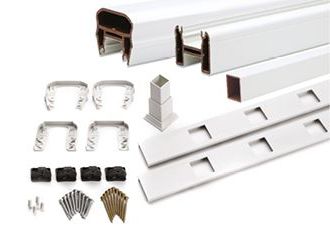

3. Rail & Baluster Kit - Composite Includes: Crown Top Rail, Universal Bottom Rail, Square Balusters, Baluster Spacers, Adjustable Foot Block and Mounting Hardware 6’ x 36” Rail & Baluster Kit - Composite: - Horizontal – available in Classic White, Charcoal Black and Vintage Lantern - Stair – available in Classic White -8' x 36” Rail & Baluster Kit - Composite: - Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern Actual dimensions: - 6' Rail: 67.5 in x 36 in - 8' Rail: 91.5 in x 36 in	3. Rail & Baluster Kit - Aluminum Includes: Crown Top Rail, Universal Bottom Rail, Round Aluminum Balusters, Baluster Spacers, Adjustable Foot Block and Mounting Hardware - 6’ x 36” Rail & Baluster Kit - Aluminum: - Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern -8' x 36” Rail & Baluster Kit - Aluminum: -Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern Actual dimensions: -6' Rail: 67.5 in x 36 in -8' Rail: 91.5 in x 36 in

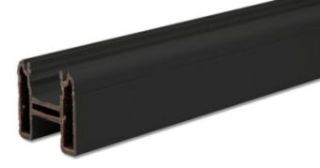

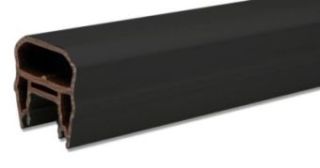

3A. Crown Top Rail Actual Length: -6' Rail - 67.5" -8' Rail - 91.5" Horizontal rail attached to the top of the balusters and the posts	3A/3B. Universal Top & Bottom Rail Actual Length: -6' Rail - 67.5" -8' Rail - 91.5" Horizontal rail attached to the top of the balusters and the posts. The top rail portion serves as base for the installation of a deck board that acts as a coctail rail.

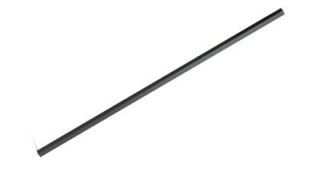

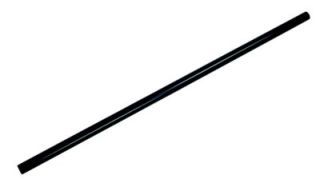

4. Round Aluminum Baluster Actual External Dimensions: -36" Rail Height .75" x 30.25" -42" Rail Height .75" x 36.25" 20 per pack Vertical rungs–sometimes called spindles–that fill the space between posts	4. Square Aluminum Baluster Actual External Dimensions: -36" Rail Height .75" x 30.25" -42" Rail Height .75" x 36.25" 20 per pack Vertical rungs–sometimes called spindles–that fill the space between posts

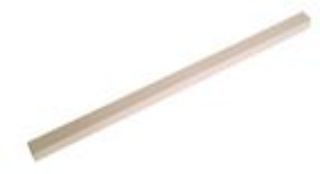

4. Sqaure Composite Baluster Actual External Dimensions: -36" Rail Height 1.418" x 1.418" x 30.375" -42" Rail Height 1.418" x 1.418" x 36.375" 16 per pack Vertical rungs–sometimes called spindles–that fill the space between posts	5. Glass Panel Accessory Kit Actual External Dimensions: - 6' Rail - 67.5" Glass panel mounting hardware; glass panel not included

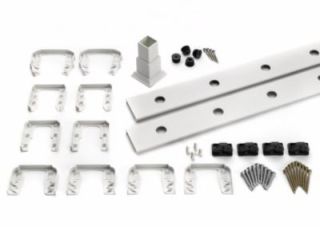

5. Accessory Infill Kit Includes: 2 Baluster Spacers, Adjustable Foot Block, Mounting Hardware Actual lengths -6' Rail - 67.5" & 8' Rail - 91.5" -Available in 6’ and 8’ lengths for square, colonial and round balusters; horizontal and stair applications.

Trex Railing in Classic White with Island Mist Cocktail Rail and Square Balusters

Photo: TREX TRANSCEND RAILING IN CLASSIC WHITE WITH ISLAND MIST COCKTAIL RAIL AND BLACK SQAURE BALUSTERS

Trex - select Railing

select-decking-railing-furniture-dining-pebble-classic-white-grey

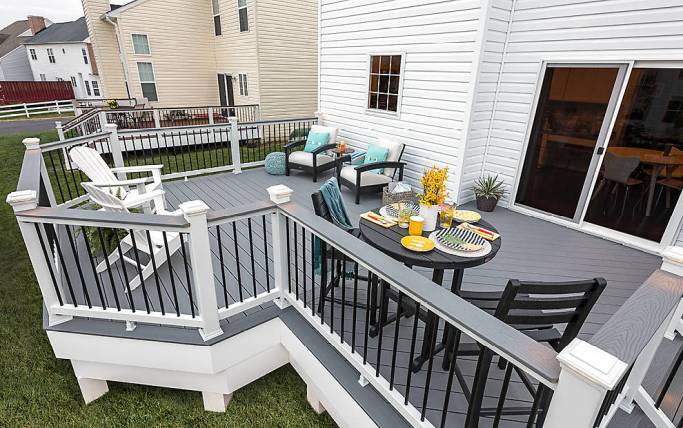

Photo: TREX SELECT RAILING IN CLASSIC WHITE WITH ROUND ALUMINUM BALUSTERS IN CHARCOAL BLACK WITH A PEBBLE GREY COCKTAIL RAIL

STREAMLINED AND SIMPLE

Trex's luxurious-yet-affordable railing offers an easy installation process that’s perfect for the DIYer. We keep things tidy in classic colors that complement any deck design — all paired with the balusters to match.

Trex Select - Post Sleeves and Components

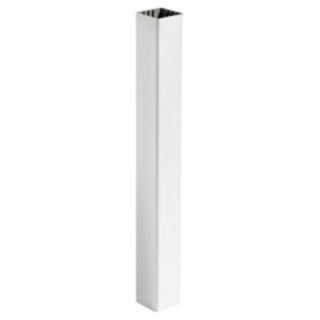

1. 4" Post Sleeve 4" x 4" x 39"/108" vctual external Dimensions: - 4.45" x 4.45" x 40" - 4.45" x 4.45" x 108" Fits over 4”x4” Pressure-Treated Post	1. 6" Post Sleeve 6" x 6" x 39"/108" vctual external Dimensions: - 5.5" x 5.5" x 39" - 5.5" x 5.5" x 108" Hollow sleeve that fits over a solid, pressure-treated post or post mount face fastening. Fits over 4”x4” Pressure-Treated Post. Available in Classic White only.

2A. Flat Post Sleeve Cap Actual External Dimensions: -4" x 4" (4.55" x 4.55") -6" x 6" (5.55" x 5.55") 6" Available in Classic White only.	2A. Pyramid Post Sleeve Cap Actual External Dimensions: -4" x 4" (4.55" x 4.55") -6" x 6" (5.55" x 5.55") 6" Available in Classic White only.

2b. Post Sleeve Skirt Actual External Dimensions: -4" x 4" (4.55" x 4.55") -6" x 6" (5.55" x 5.55") 6" Available in Classic White only.

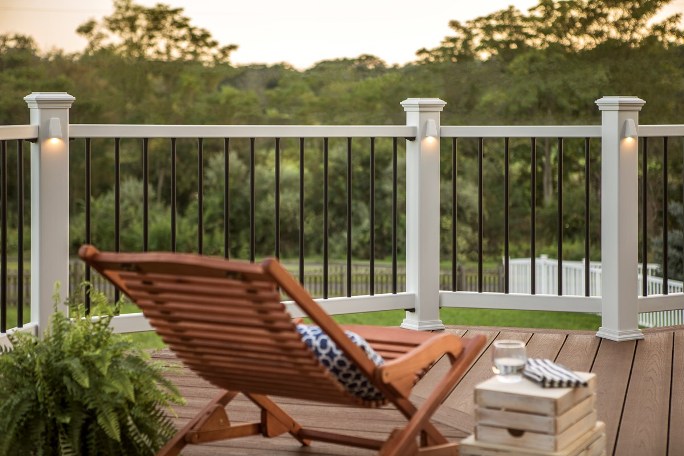

trex select railing and trex enhance saddle

Photo: TREX SELECT RAILING IN CLASSIC WHITE WITH ROUND ALUMINUM BALUSTERS IN CHARCOAL BLACK WITH TREX ENHANCE SADDLE DECKING

Trex Select - Rails, Balusters, & Infills

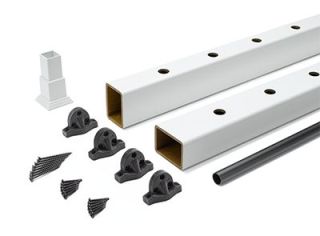

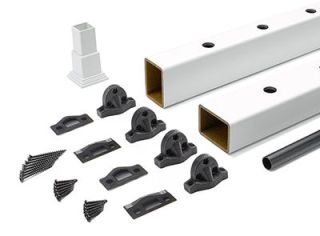

3. Rail & Baluster Kit - Horizontal Includes: Top Rail, Bottom Rail, Round Aluminum Balusters, Adjustable Foot Block, Hardware Pack Actual length - 6' x 36" Rail & Baluster Kit - 8' x 36" Rail & Baluster Kit -Actual lengths: 6' Rail - 67.5" & 8' Rail -91.5".	3. Rail & Baluster Kit - Stair Includes: Top Rail, Bottom Rail, Round Aluminum Balusters, Adjustable Foot Block, Hardware Pack Actual length - 6' x 36" Rail & Baluster Kit - 8' x 36" Rail & Baluster Kit -Actual lengths: 6' Rail - 67.5" & 8' Rail -91.5".

Trex - signature Railing

Trex - Signature Railing in Charcoal Black with Transcend Decking Havana Gold

Photo: TREX SIGNATURE RAILING IN CHARCOAL BLACK WITH TREX TRANSCEND DECKING IN HAVANA GOLD

A CUSTOMIZED COMPLEMENT TO MODERN DECKING.

Effortless style, exceptional strength—that’s Trex Signature® Railing.

Durable and design-minded, Trex's powder-coated aluminum railing can be customized to suit any style. A glass infill keeps things clean and contemporary, while mesh or rod railing lends an industrial edge.

Available in a selection of elegant neutrals and backed with the stability only aluminum railing offers, along with Trex’s 25-year limited warranty.

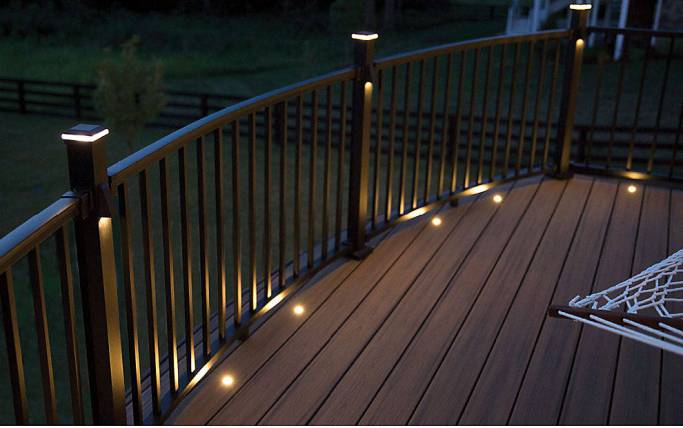

Choose from round or square balusters for classic appeal. Got a great view? Consider curving your rails to mimic the sweeps of garden below. And entertainers, take note: wide, beverage-ready cocktail railing may just be the ideal choice for you.

trex-decking-havana-gold-signature-railing-glass-charcoal-black

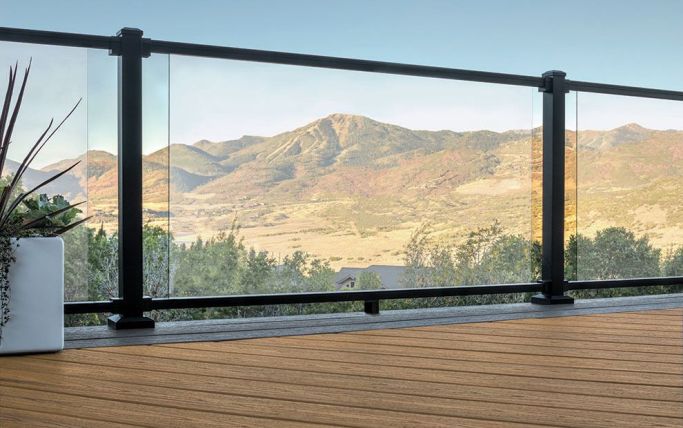

Photo: TREX SIGNATURE GLASS RAILING WITH CHARCOAL BLACK FRAME WITH TRANSCEND HAVANA GOLD DECKING

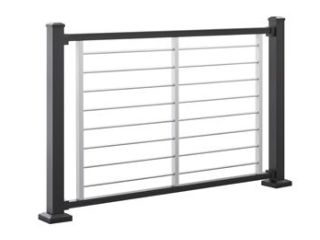

ROD RAIL - No special installation tools or tightening required; a quick and easy alternative to cables. - Can be topped with a cocktail rail for added functionality	CURVED RAIL - Curvable hand railing and swivel brackets unite oppositional angles - Custom order now, enjoy complete freedom of design later	COCKTAIL RAIL - The perfect resting spot for planters, drinks and more - Choose your preferred color of Trex decking to match or contrast your deck treads

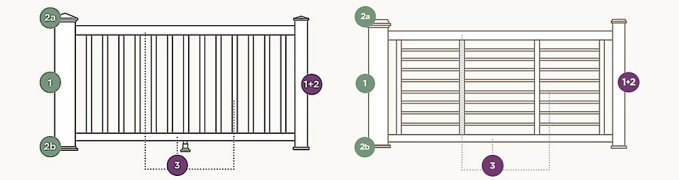

Trex Signature Railing Components

trex-signature-railing-components-aluminum-rod

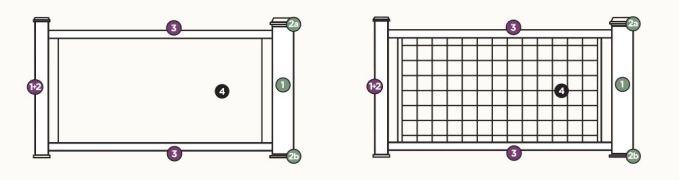

trex-signature-railing-step-process-glass-mesh

All options can be topped with cocktail railing for a form-meets-function ledge with the exception of Glass Rail Kit.

Trex Signature - Post Sleeves and Components

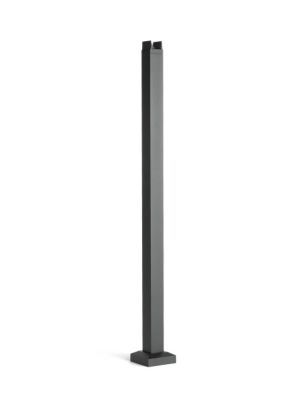

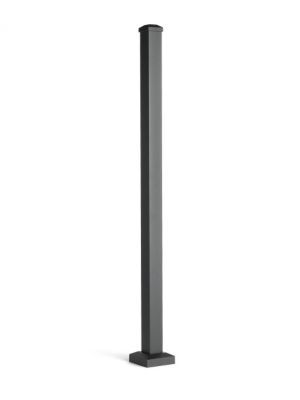

Aluminum Post with Cap & Skirt 2.5" x 2.5" Actual Dimensions - 37" Post - Horizonal 2.5" x 2.5" x 37" - 43" Post - Horizontal 2.5" x 2.5" x 43" - 53" Post - Horizontal 2.5" x 2.5" x 53" -Aluminum posts can only be used with the Trex Signature line.	Aluminum Crossover Post 2.5" x 2.5" Actual Dimensions - 36" Post - Horizonal 2.5" x 2.5" x 36" - 42" Post - Horizontal 2.5" x 2.5" x 42" -Aluminum posts can only be used with the Trex Signature line.

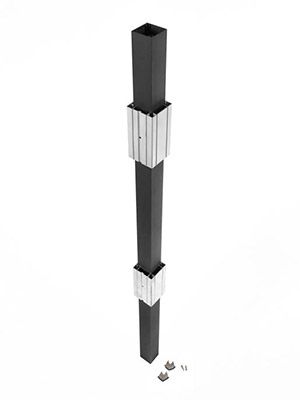

Aluminum Joist Mount Post 3.75" x 3.75" x 7" Actual Dimensions - 63" Aluminum Post (cut-to-length) - Aluminum inserts with set screws - 1/2" HG Bolts, washers and nuts (not pictured) - Bolt spacing template For use with 4 x 4 Composite post sleeve. Use with all Trex railing heights

trex-decking-havana-gold-signature-railing-charcoal-black-rod-rail-beauty

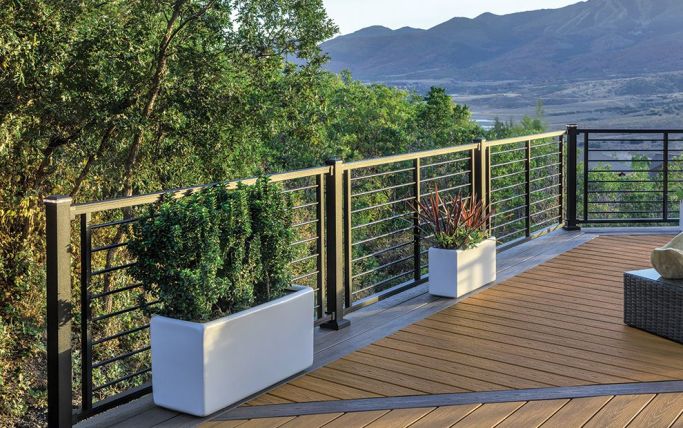

Photo: TREX SIGNATURE ROD RAILING IN CHARCOAL BLACK WITH TRANSCEND HAVANA GOLD DECKING AND SPICED RUM

Trex Signature - Rails, Balusters, & Infills

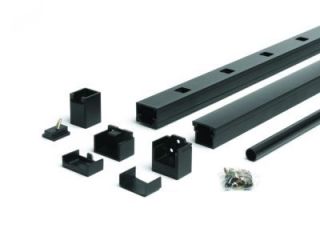

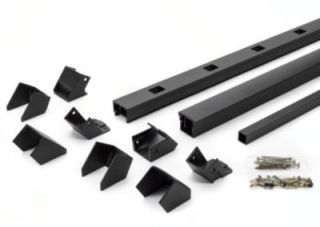

3. STAIR–RAIL KIT W/ROUND OR SQUARE BALUSTERS: TOP RAIL, BOTTOM RAIL, ROUND OR SQUARE BALUSTERS, MOUNTING & SUPPORT HARDWARE Includes: Top Rail, Bottom Rail, Square Balusters, Mounting & Support Hardware. Actual Dimensions - 6' x 36" Rail - 72" x 36" - 8' x 36" Rail - 96" x 36" - 8' x 42" Rail - 72" x 42" - 8' x 42" Rail - 96" x 42" - 53" Post - Horizontal 2.5" x 2.5" x 53" -Available in 6' or 8' lengths and 36" or 42" Rail height for horizontal and stair applications.	3. HORIZONTAL–RAIL KIT W/ROUND OR SQUARE BALUSTERS: TOP RAIL, BOTTOM RAIL, ROUND OR SQUARE BALUSTERS, MOUNTING & SUPPORT HARDWARE Includes: Top Rail, Bottom Rail, Square Balusters, Mounting & Support Hardware. Actual Dimensions - 6' x 36" Rail - 72" x 36" - 8' x 36" Rail - 96" x 36" - 8' x 42" Rail - 72" x 42" - 8' x 42" Rail - 96" x 42" - 53" Post - Horizontal 2.5" x 2.5" x 53" -Available in 6' or 8' lengths and 36" or 42" Rail height for horizontal and stair applications.

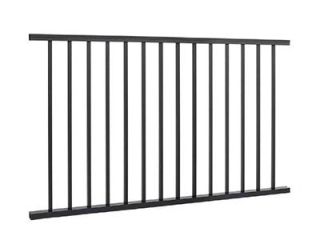

3. TREX SIGNATURE RAILING PANEL Includes: Top Rail, Bottom Rail, Square Balusters, Trex Signature Railing Mounting Hardware must be ordered separately. Actual Dimensions - 6' x 36" Rail - 72" x 36" - 8' x 36" Rail - 96" x 36" - 8' x 42" Rail - 72" x 42" - 8' x 42" Rail - 96" x 42" - 53" Post - Horizontal 2.5" x 2.5" x 53" -Available in 6' or 8' lengths and 36" or 42" Rail height for horizontal applications. Onlyoffered with square aluminum balusters.	3. RAIL & ROD KIT Includes: Top Rail, Bottom Rail, Vertical Supports, Aluminum Rods, Hardware & Bracket Pack, Anti Rattle Strips Actual Dimensions - 6' x 36" Rail - 72" x 36" Rail & Rod Kit - 8' x 36" Rail - 96" x 36" Rail & Rod Kit - 8' x 42" Rail - 72" x 42" Rail & Rod Kit - 8' x 42" Rail - 96" x 42" Rail & Rod Kit - 53" Post - Horizontal 2.5" x 2.5" x 53" -Available in Charcoal Black Rails and Platinum Rods or Bronze Rails and Platinum Rods.

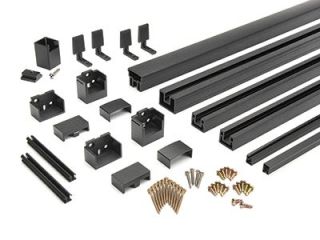

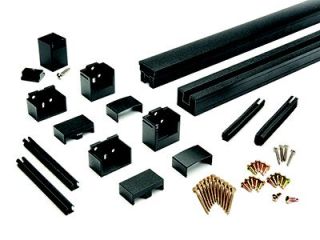

TREX SIGNATURE GLASS RAIL KIT Includes: Top Rail & Bottom Rail, Hardware & Bracket Pack, Footblock Actual Dimensions - 6' x 36" Rail - 72" x 36" -Available with Charcoal Black or Classic White railing. *Glass infill sold separately. Should be sourced locally.	TREX SIGNATURE MESH RAIL KIT Includes: Top Rail & Bottom Rail, Hardware & Bracket Pack, Footblock, Verticals, & Anti-rattle Gaskets Actual Dimensions - 6' x 36" Rail - 72" x 36" - 8' x 36" Rail - 96" x 36" - 6' x 42" Rail - 72" x 42" - 8' x 42" Rail - 96" x 42" -Available with Charcoal Black or Bronze railing. *Mesh infill sold separately.

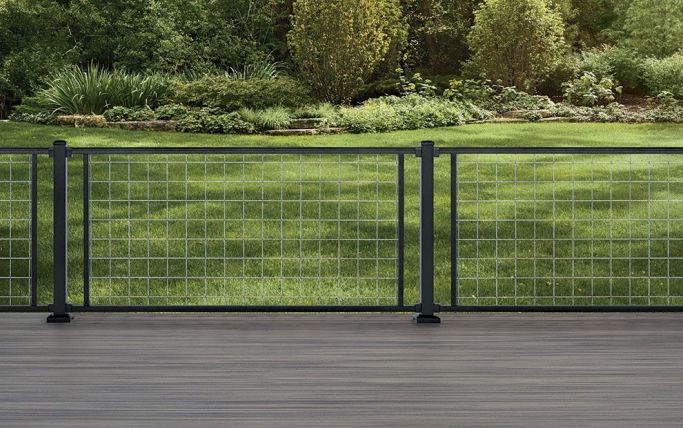

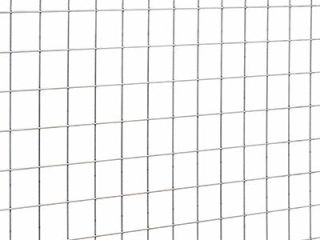

TREX SIGNATURE MESH PANEL Includes: Mesh Panel Actual Dimensions - 64" x 32-3/8" Stainless Steel Mesh - 88" x 32-3/8" Stainless Steel Mesh - 88" x 38-3/8" Stainless Steel Mesh - 108" x 3/16" x-36-3/16" Universal 316 Stainless Steel Mesh - Stair -Available in stainless steel.
